To set up your gFiber Wi-Fi 6E Mesh Extender (Model GE6E220C), power it on within 5 feet of your router, press the WPS button on your router, and then press the WPS button on your extender. Once the status light turns solid green, move the extender to a location halfway between your router and weak Wi-Fi area.
Quick setup guide
-
Place the extender within 5 feet of your router and plug it into power.
-
Press the WPS button on your gFiber Wi-Fi 6E Router until the light blinks.
-
Press the WPS button on your extender until the light blinks white.
-
Wait for the status light on the extender to turn solid green to confirm pairing.
-
Move the extender to its permanent spot and plug it back into power.
Setup takes 5–10 minutes, and the extender light will display solid green when connected.For step-by-step visual guidance, watch our mesh extender self-install video.
What’s in your self-install kit
If your mesh extender arrived in a standalone self-install kit, verify that your box includes the following items before starting:

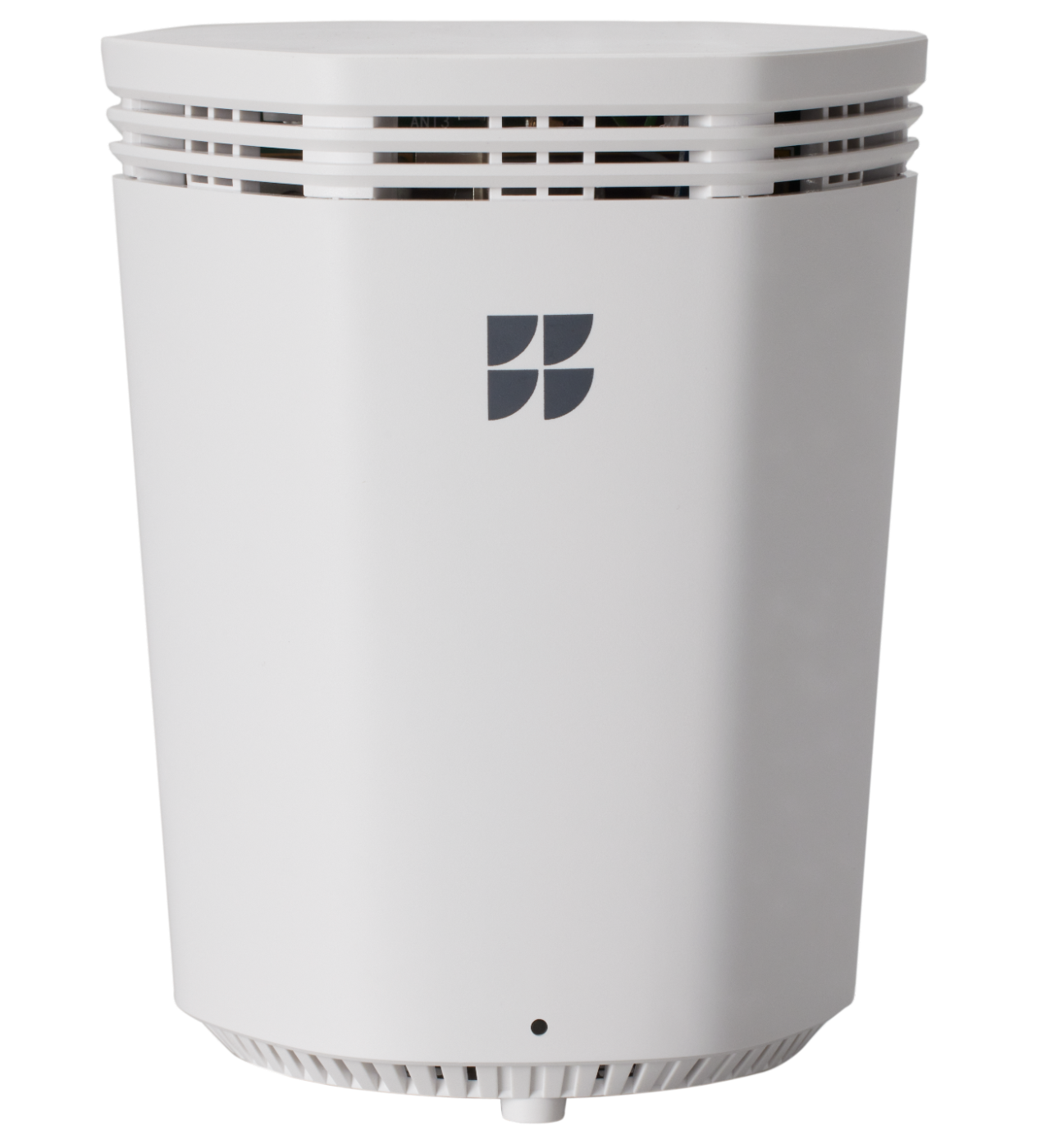

- 1 gFiber Wi-Fi 6E Mesh Extender (Model GE6E220C)

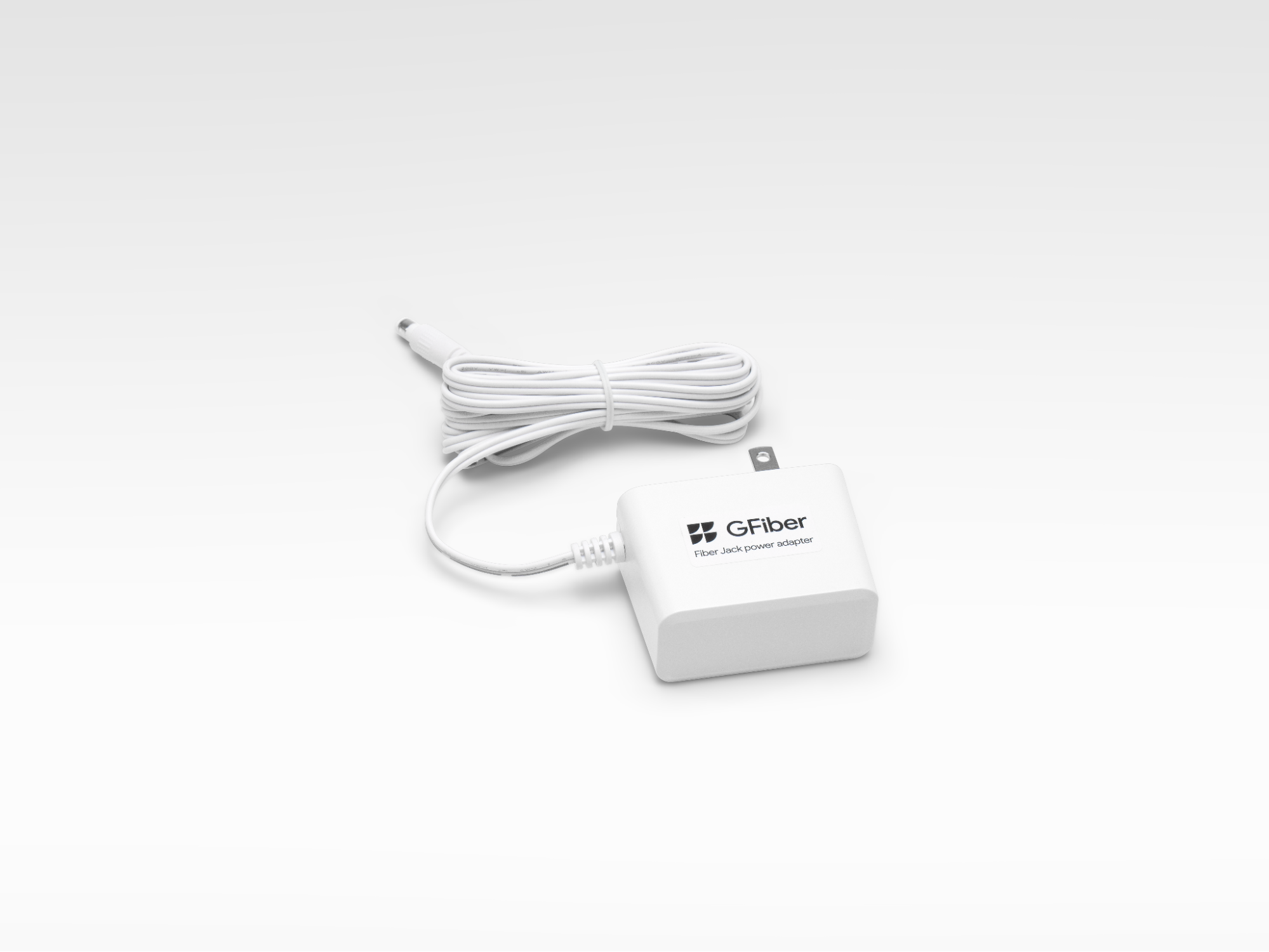

- Power adapter cable

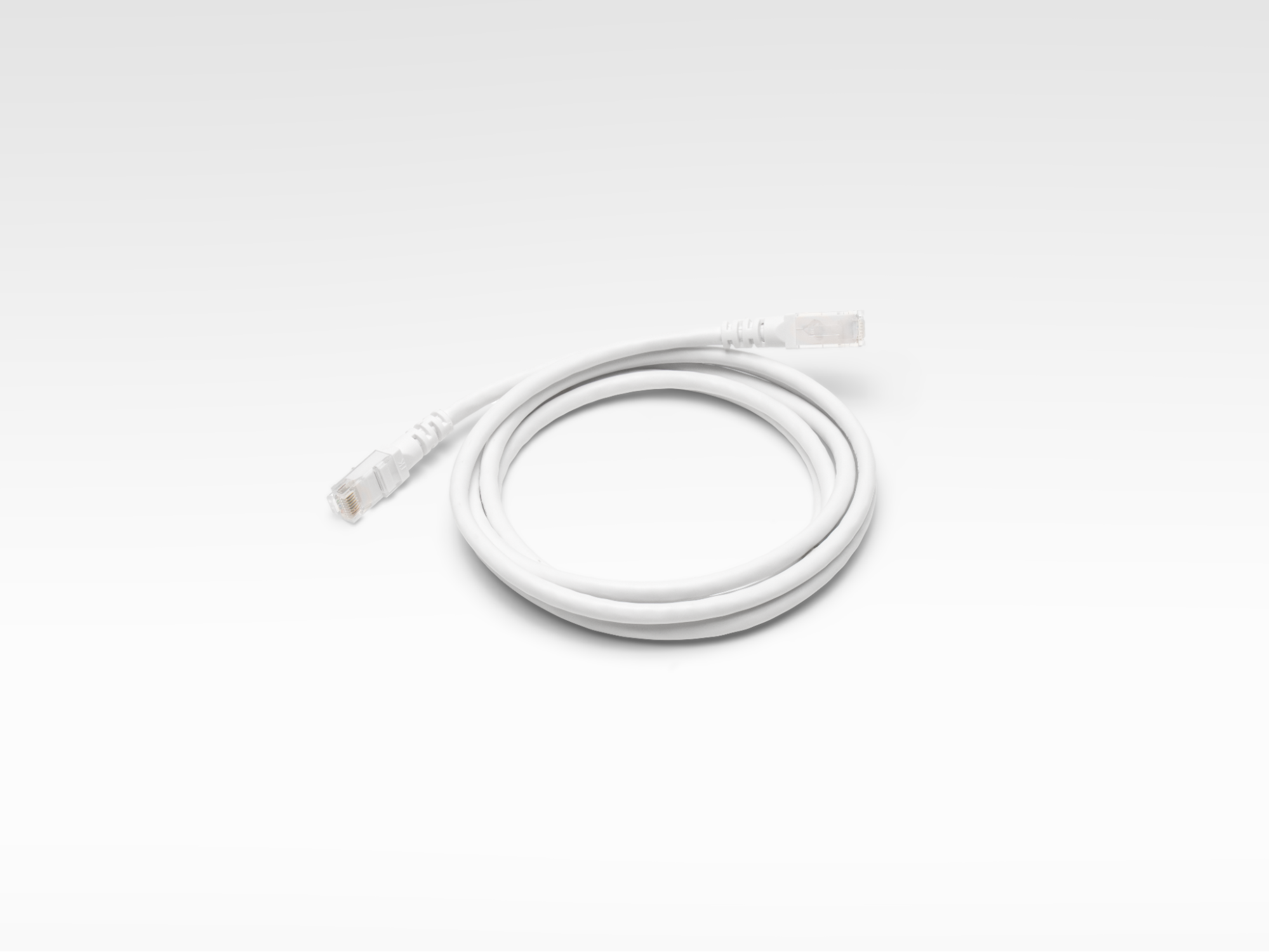

- Ethernet cable
Power on your mesh extender
-
Place your mesh extender within 5 feet of your router during the initial setup process.
-

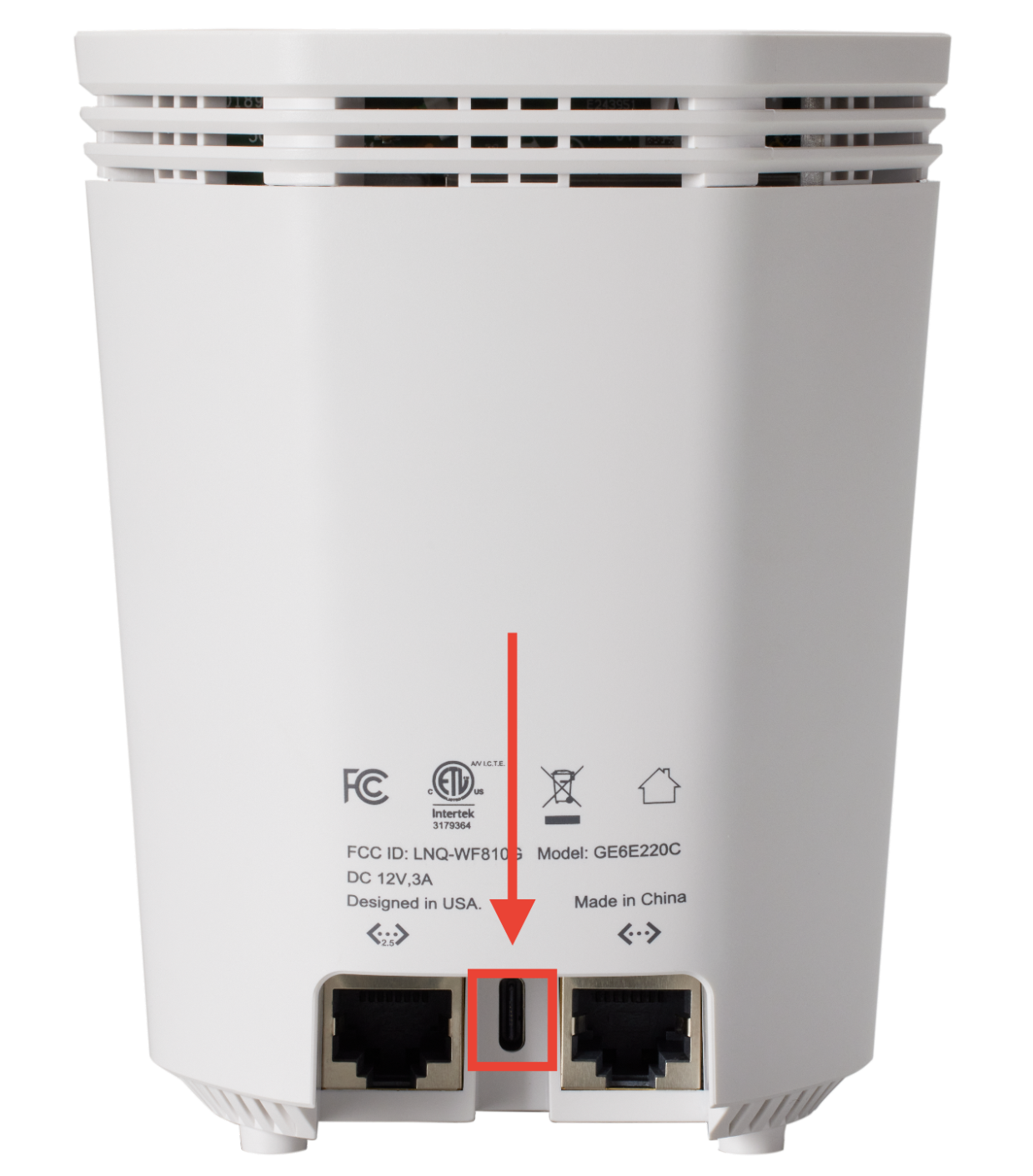

Connect the power adapter cable to the extender and plug it into a nearby wall outlet.
-

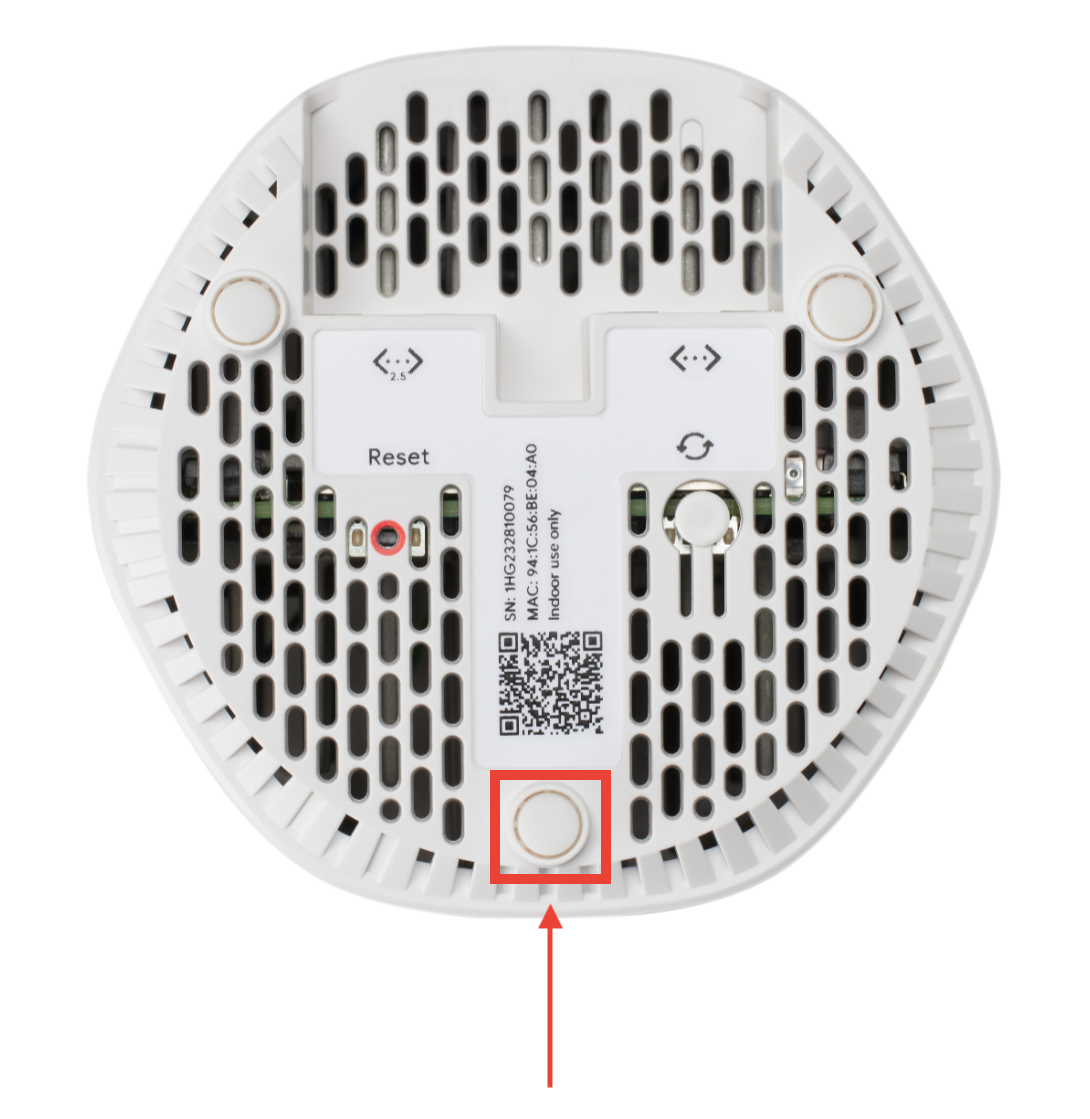

On the bottom of the extender, press the power button to turn on the unit.
The status light will turn solid white, indicating the extender is powered on and ready for pairing.
Pair extender with your router
-

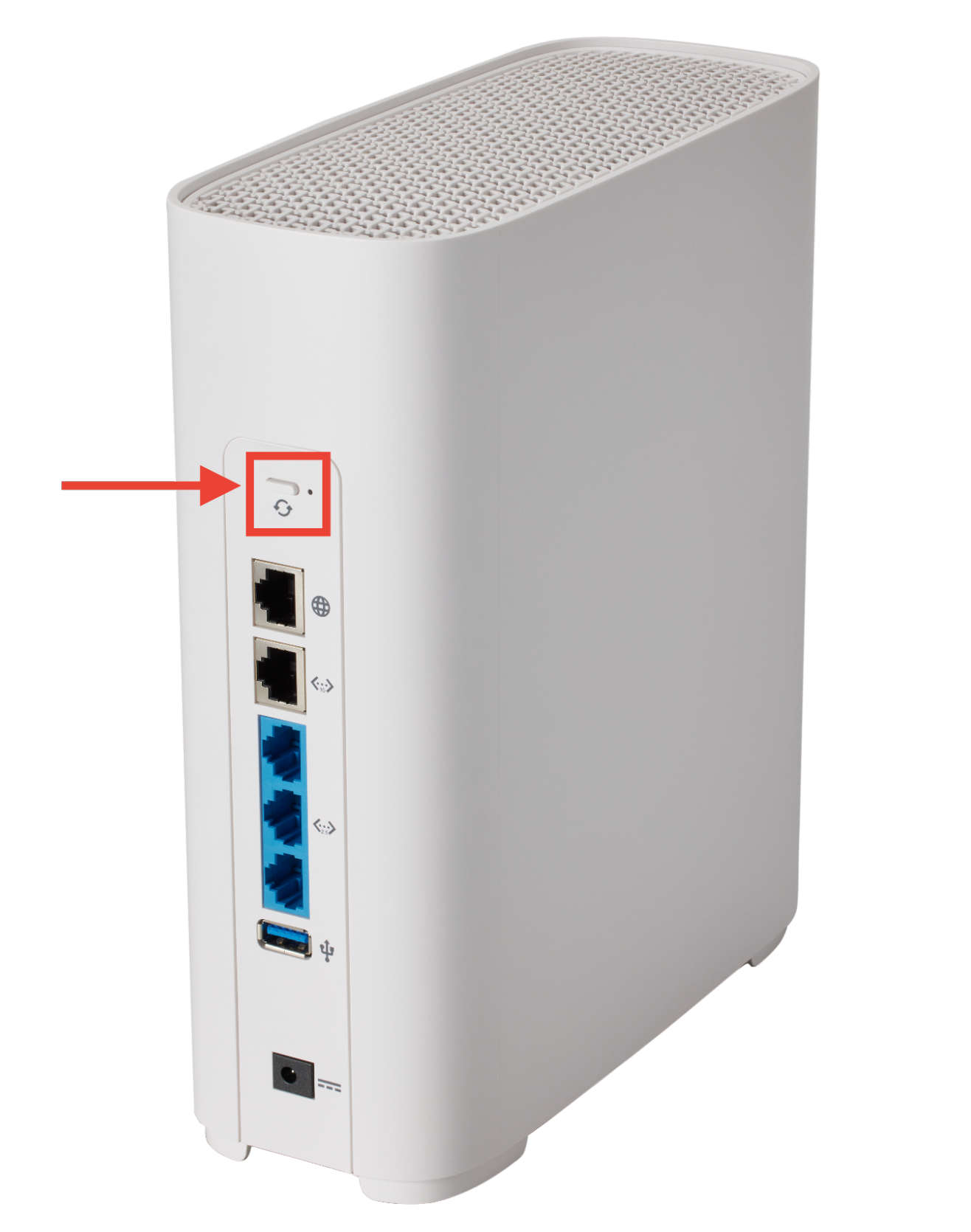

On the top of your gFiber Wi-Fi 6E Router, press the WPS button.
-

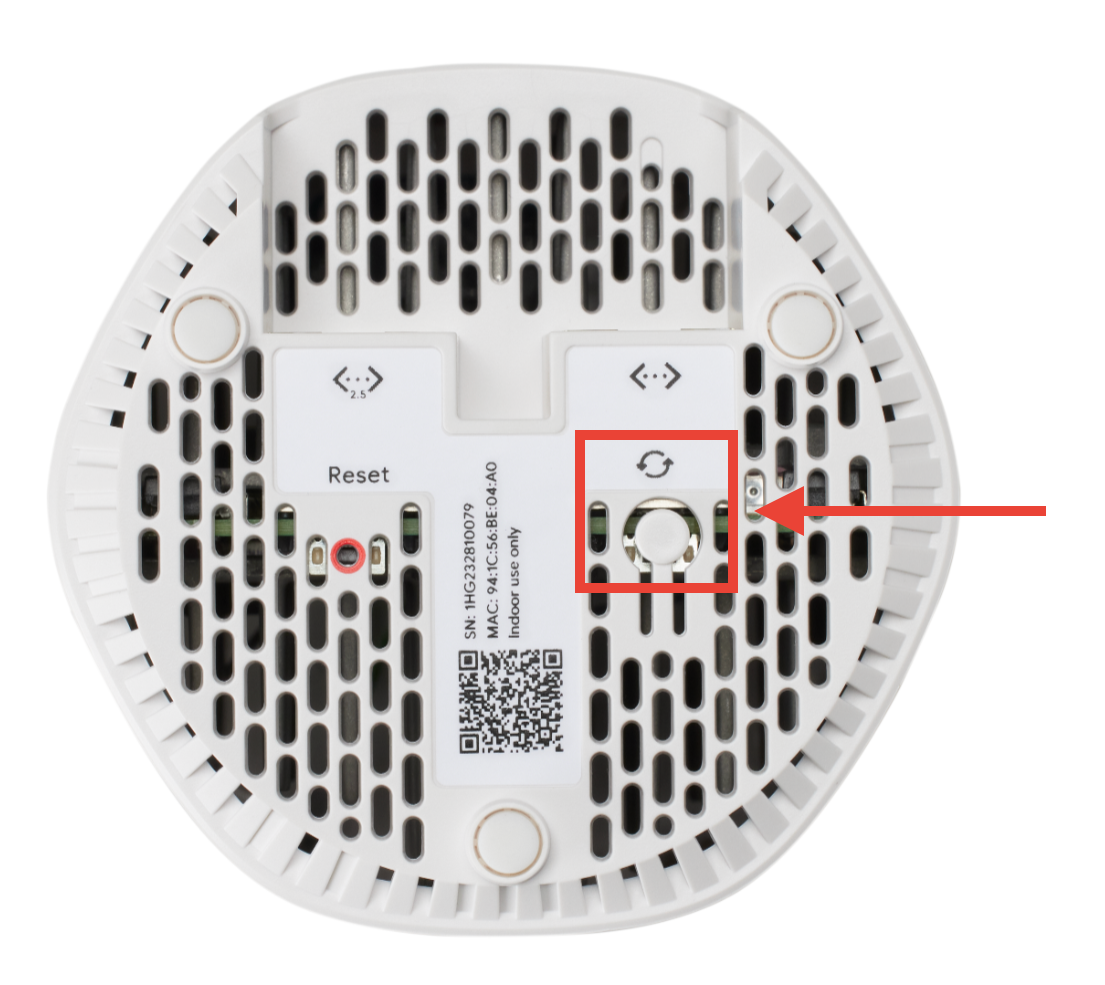

On the bottom of your mesh extender, press the WPS button.
-
Wait 1 to 2 minutes while the devices establish a secure connection.
Both status lights will stop blinking, and the extender light will turn solid green to confirm successful pairing.
Pair using an Ethernet cable
-
Connect one end of the provided Ethernet cable to any open LAN port on your router.
-
Connect the other end of the Ethernet cable to the Ethernet port on the back of your mesh extender.
-
Wait 2 minutes until the status light turns solid green before disconnecting the cable to move the extender.
Both status lights will stop blinking, and the extender light will turn solid green to confirm successful pairing.
Place extender in permanent location
-
Unplug the mesh extender from its temporary pairing location.
-
Move the extender to a power outlet located roughly halfway between your router and the area needing stronger Wi-Fi.
-
Plug the extender into the outlet and press the power button on the bottom.
-
Observe the status light to verify signal quality.
-
On your mobile device, run a speed test or check the network status in the gFiber App to confirm optimal coverage.
Understand light status indicators
| Light Color | Status | Required Action |
| Solid green | Connected | You're all set. Your connection strength is strong. |
| Blinking green | Powering on | Wait 1–2 minutes for startup to complete. |
| Solid white | Ready to pair | Begin the pairing process using the WPS button. |
| Blinking white | Pairing in progress | Keep the extender near the router until pairing completes. |
| Solid red | No connection | Move the extender closer to your router and re-pair. |
Frequently asked questions
We recommend using no more than 2 extenders per home network. Adding more than 2 extenders can create signal interference and decrease network speeds. Extenders are best suited for homes larger than 2,000 sq. ft. or spaces with thick wall obstruction.
-
In your browser, sign in to your gFiber account at gfiber.com/signin/.
-
In the Equipment section on the Home page, select Manage Equipment to view available equipment add-ons.
-
If your service supports an extender, click the Add Mesh Extender button. Follow the prompts to complete your order.

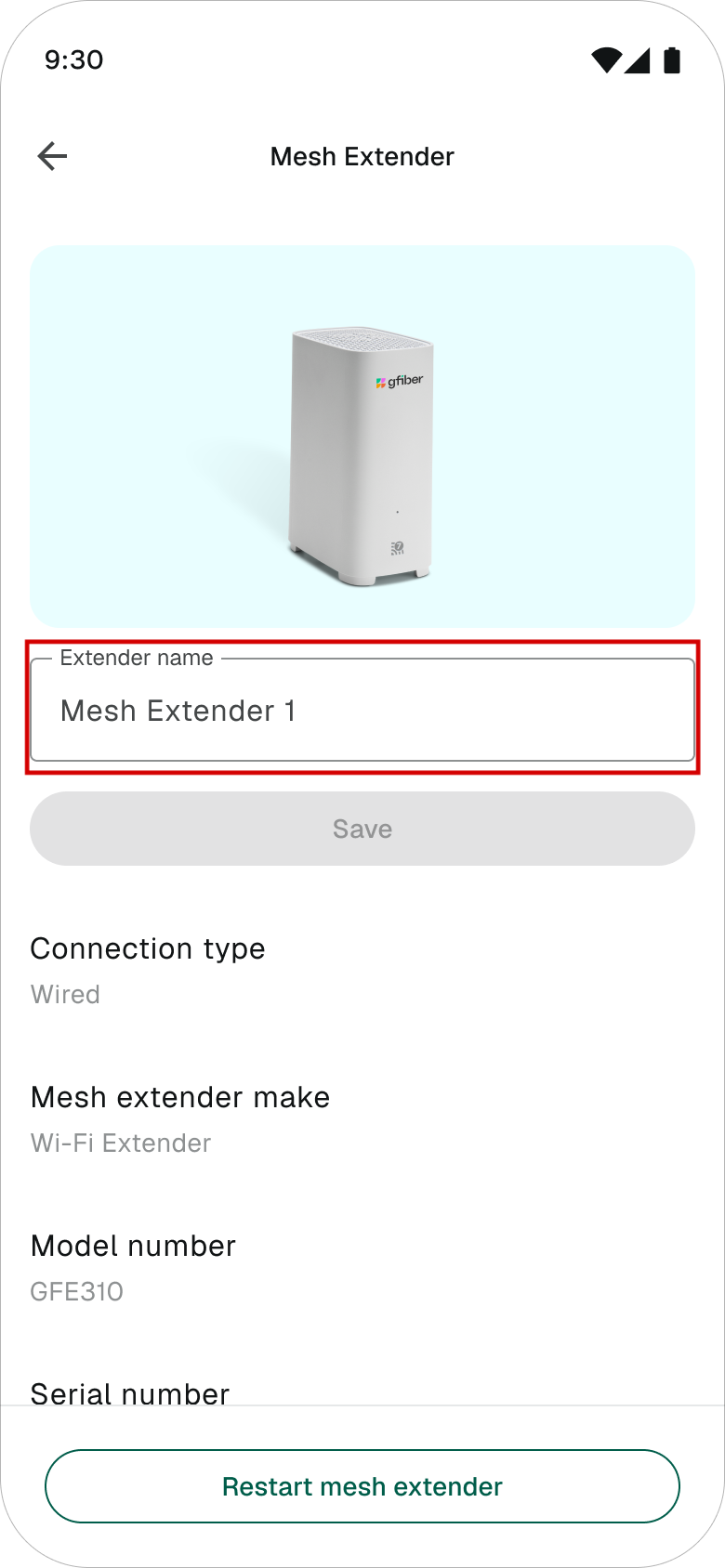

You can easily update your extender's name (like "Office" or "Living Room") directly in the gFiber App:
-
Open the gFiber App on your mobile device and sign in.
-
In the bottom navigation bar, tap Network.
-
In the Network section, tap Manage extenders.
-
Select your extender from the list and tap See details.
-
Tap the Extender name field, enter your preferred location name (e.g., "Office"), and tap Save.
For the strongest signal:
- Put it in a central, open area of your home.
- Keep it out of closed doors, cabinets, or behind panels.
- Avoid metal or glass surfaces nearby, which can cause interference.
Not sure? Use the Network Health tool in the gFiber App to check your coverage.
You can move it anytime — no special process needed.
- Unplug the extender and plug it into a power outlet at the new location.
- Wait for the status light to turn solid, which confirms it’s reconnected.
- Open the gFiber app to check your signal quality.
Just repeat the same setup process for each device.
To pair an additional extender:
- Plug it into power.
- Pair it with your router using an Ethernet cable or follow the setup steps in the gFiber App.
- Wait for the status light to confirm the connection.
- Move it to its permanent spot.
Tips for the best performance:
- Set them up in order. Place them in a sequence: Router -> Extender 1 -> Extender 2.
- Give them space. Placing extenders too close together can cause interference.
- Less is more. Too many extenders can lead to congestion and slower speeds.
| Features | Specifications |
|---|---|
| Wi-Fi | Tri-band Wi-Fi 6E (802.11ax) 2.4GHz (2x2) 5GHz (2x2) 6GHz (4x4) |
| Compatibility | 802.11 ax (Wi-Fi 6, 6E) 802.11 ac (Wi-Fi 5) 802.11 a/b/g/n |
| LAN Ports | 1 x 2.5G Ethernet port 1 x 1G Ethernet port |
| Mesh Wi-Fi | Yes |
| Dimensions | 4.9” H x 3.8” W x 3.6” D |
